Portfolio
Engineering excellence for the medical industry
The Persico Medical Portfolio showcases our specialized technologies developed to meet the highest standards of the healthcare sector. From custom-designed equipment and automated production systems to advanced plastic welding solutions, we provide reliable, compliant, and scalable innovations for medical manufacturers worldwide.

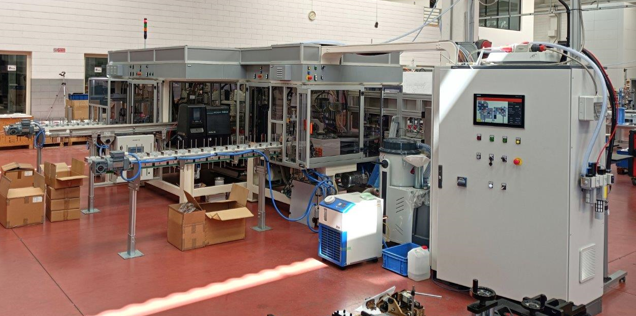

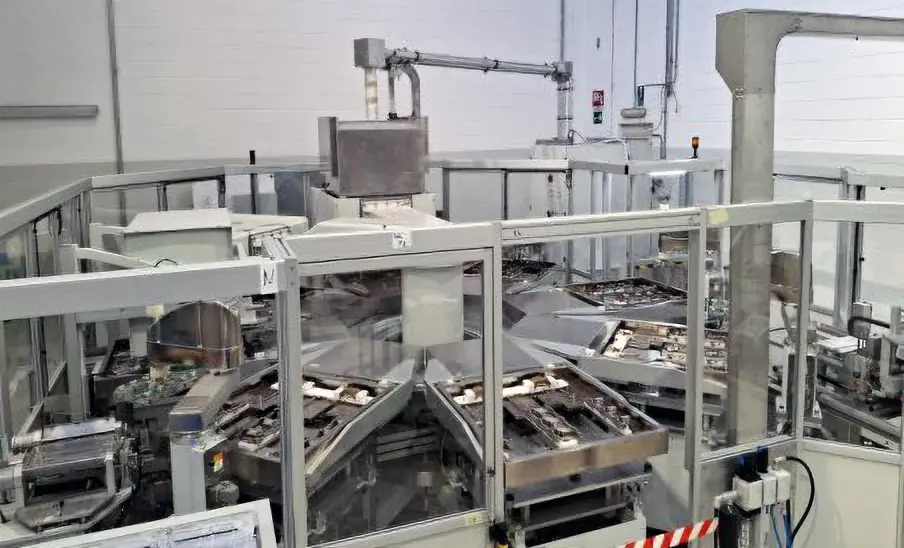

- Fully automatic blood bag production line
- Bag leak test machine
- Anticoagulant filling machine
- Blood filter production equipment
- Bag set assembling equipment

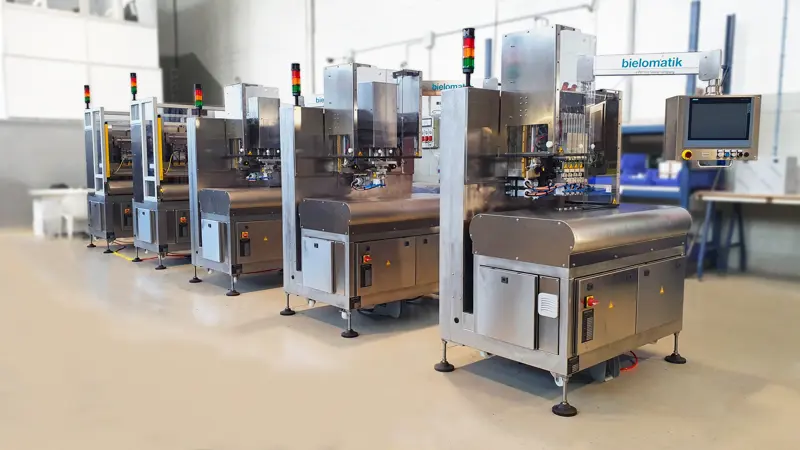

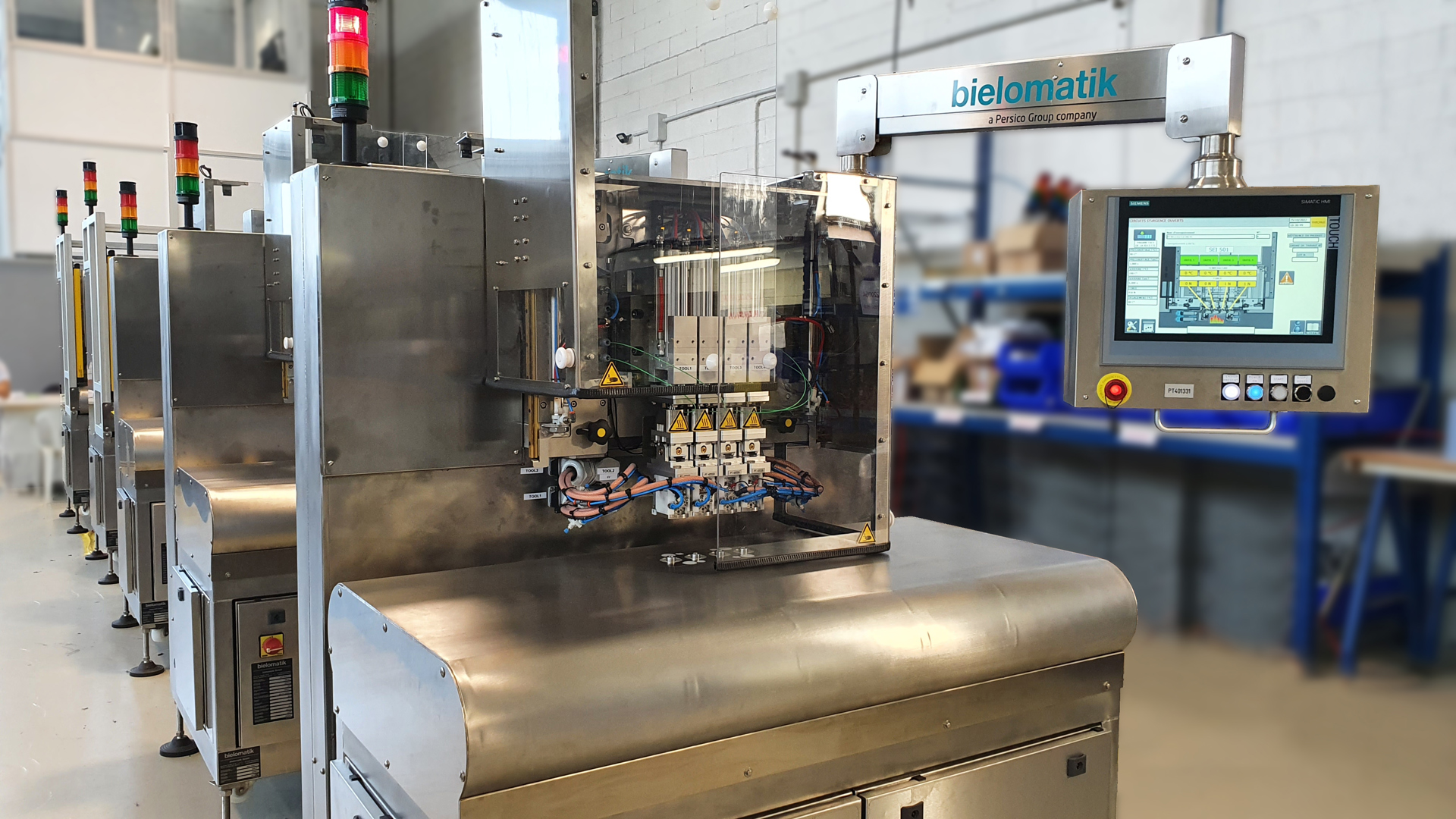

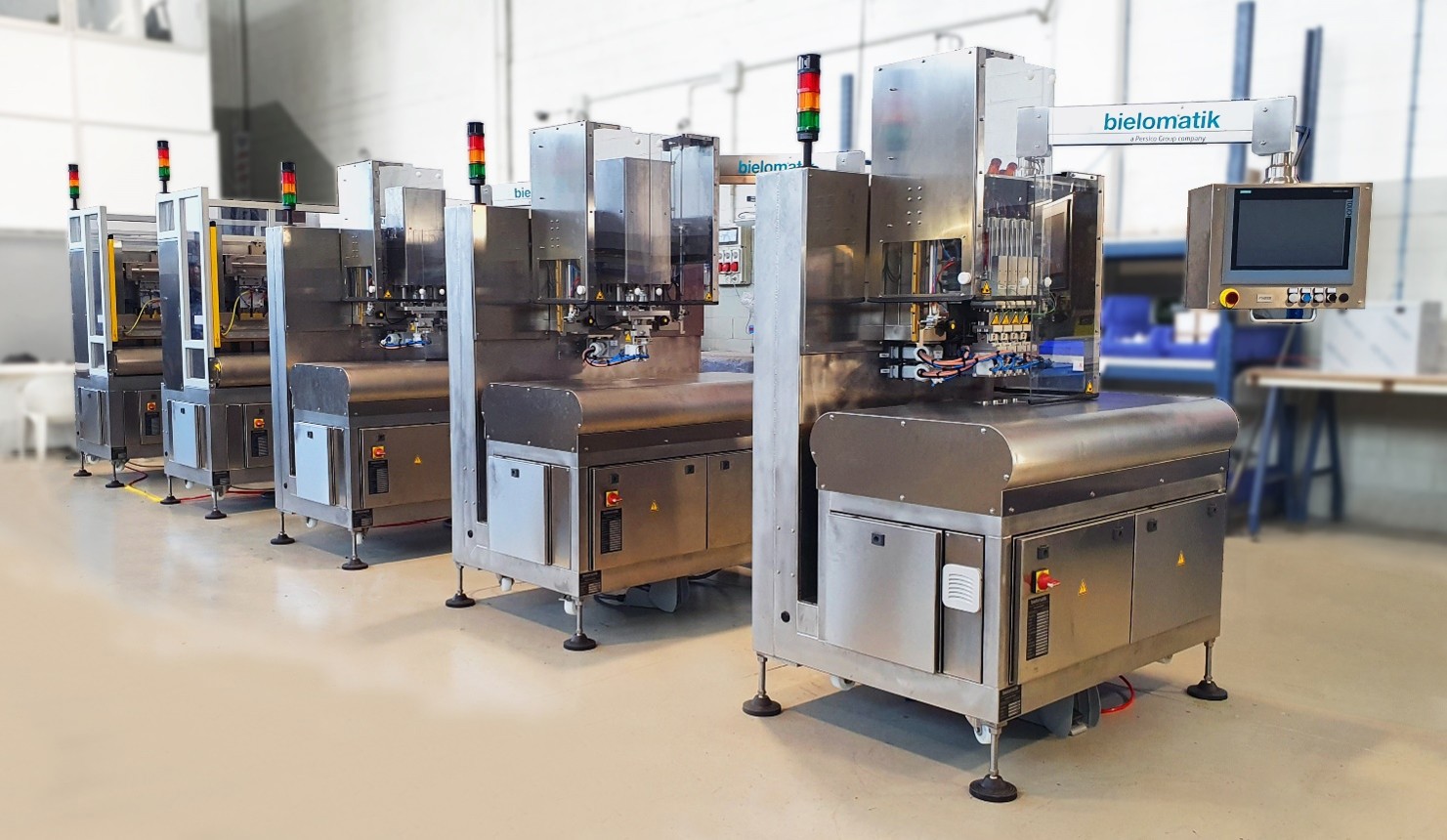

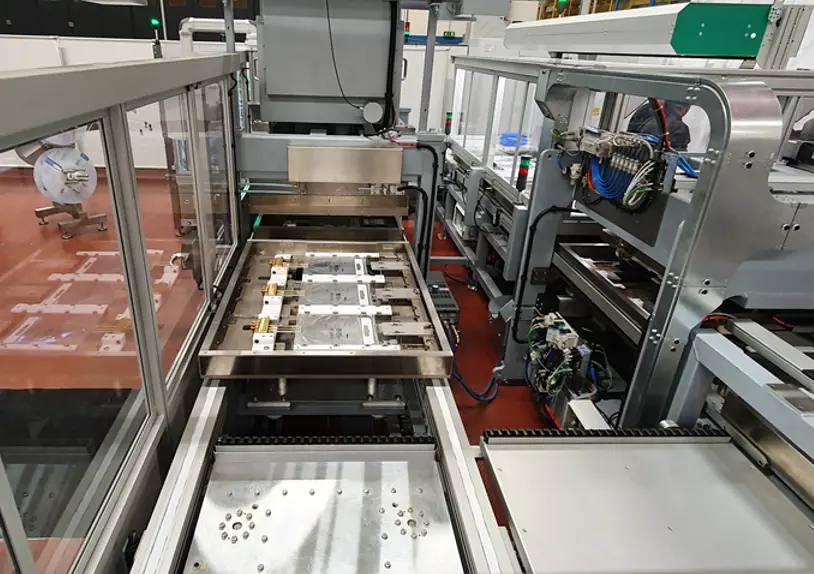

Inline machine HF for blood bags
Scope of supply:
- Machinery
- Proof of concept
- Product drawings

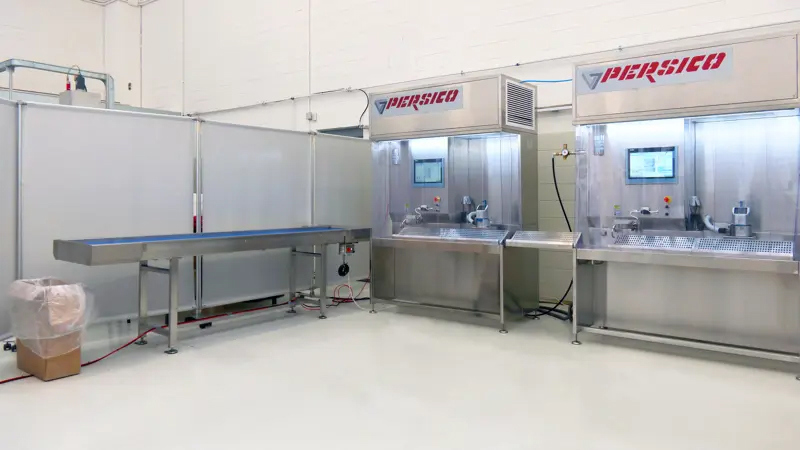

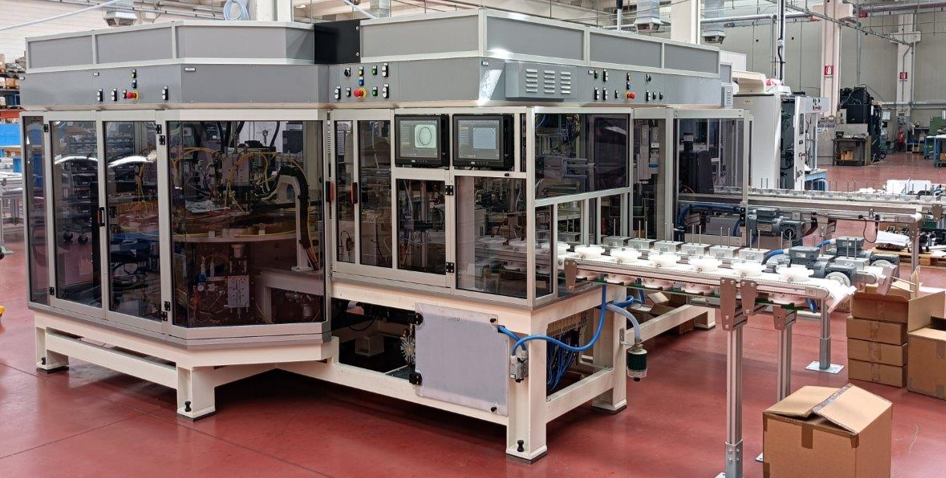

Filling machine for anticoagulant fluid
Two filling machines for the filling of different anticoagulant fluids.
- Activation of automated filling process
- Defined dosing system incl. vacuum function
- CIP/SIP processes
- Laminar flow
- Special designed product handling device
- Stainless steel execution
- Solvent dispenser for tube glueing
- HF tube sealing unit (optional)
- HMI, PLC, software acc. to 21 CFR 11, etc.
- Leak testing unit (additional station)
- Feeding conveyor belt (additional station)
- and much more

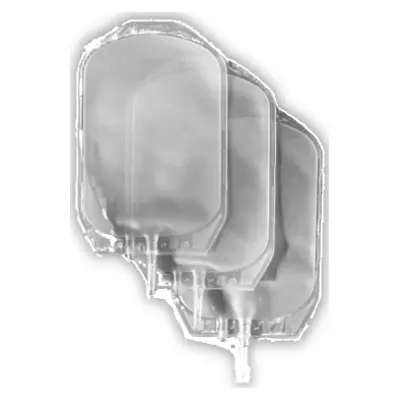

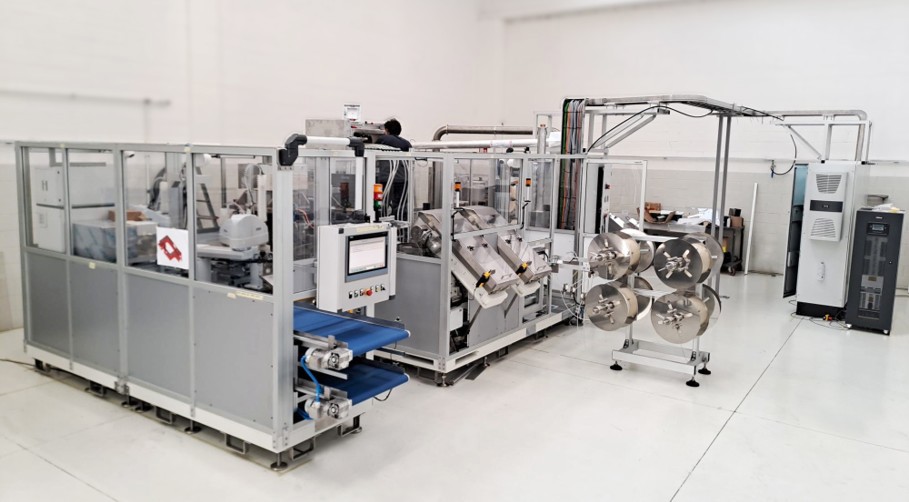

- TPN (Total Parenteral Nutrition) bag
- - Bag production machine
- - Bag / connector assembly process
- - Bag leak test process

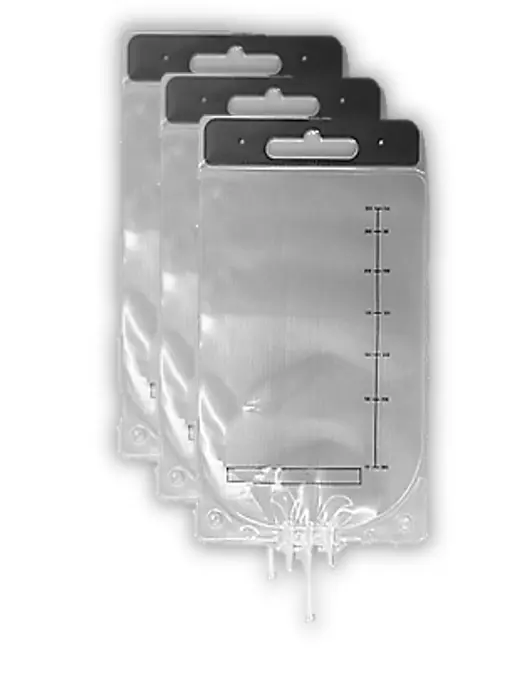

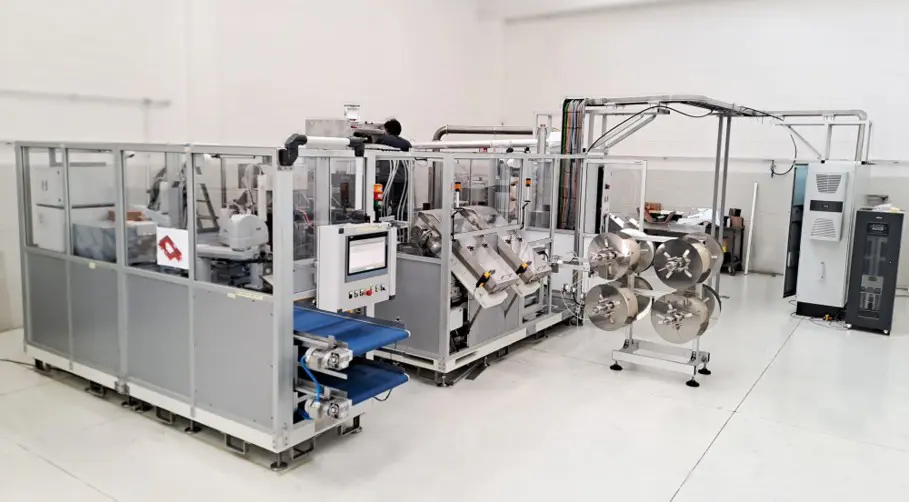

- Enteral feeding bag production equipment
- - Bag production machine
- Single chamber / multi-chamber feeding bag
- - Bag production machine
Persico Group & bielomatik your medical solutions provider
Persico Group & bielomatik provide all common plastic joining technologies, with application produced from PVC / PP / PE / EVA / Multilayer film and from PC / ABS / HDPE etc. injection molded parts.
Persico Group & bielomatik offer fully automatic production lines

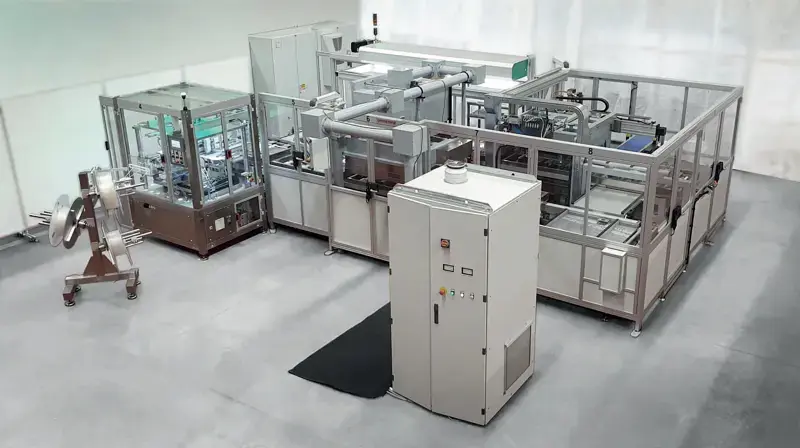

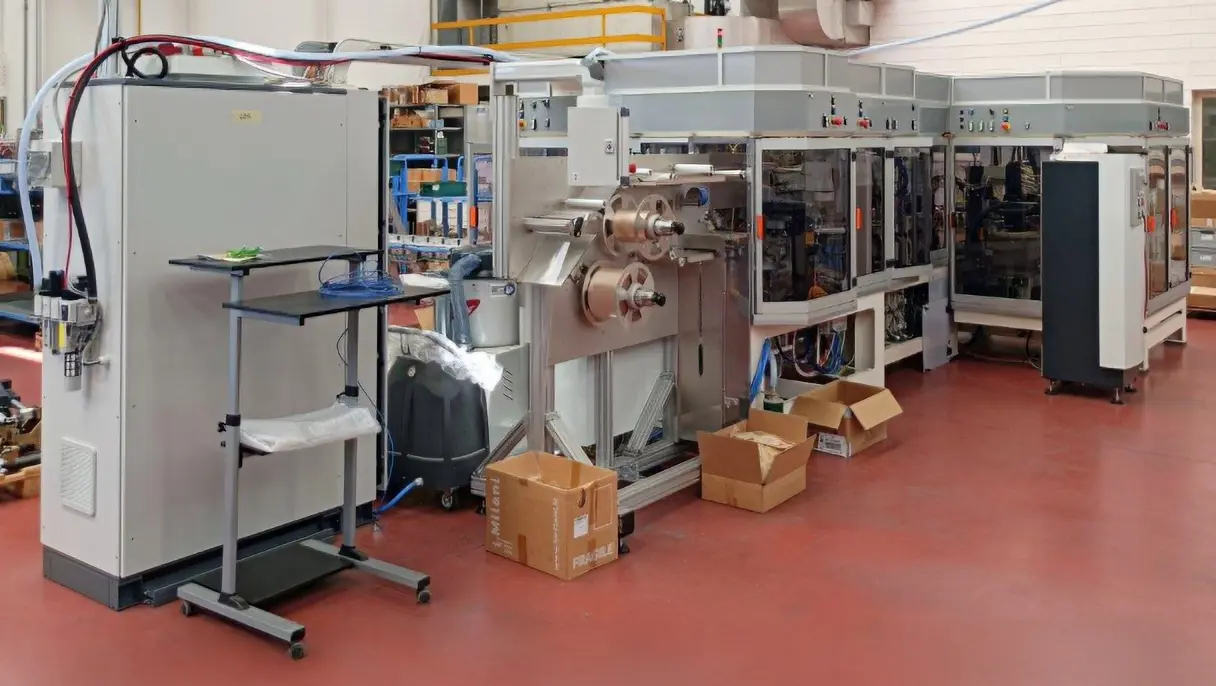

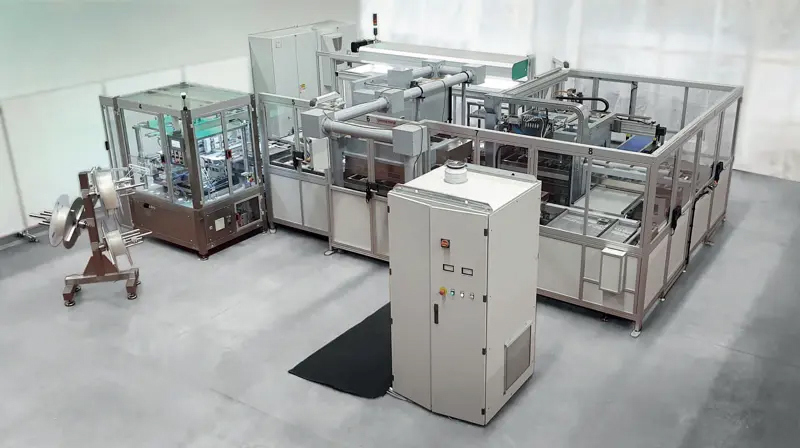

Turntable machine for nutrition bags
Key features:
- Fully automatic turntable machine
- 2-up configuration
- Technology: High frequency welding
- 7 bag designs / 250 ml to 3.000 ml
- Material: EVA
- 1 (+1) operator
- Output: 540 bags/hr (@100%)
Integrated options:
- Automatic handle feeding
- Automatic film feeding line, incl. printing, cutting, feeding robot
- Periphery and port welding in one press
- Vision control system
- Software acc. to 21 CFR 11
- Re-inforced machine frame to avoid vibrations during the welding and cutting process
- and more

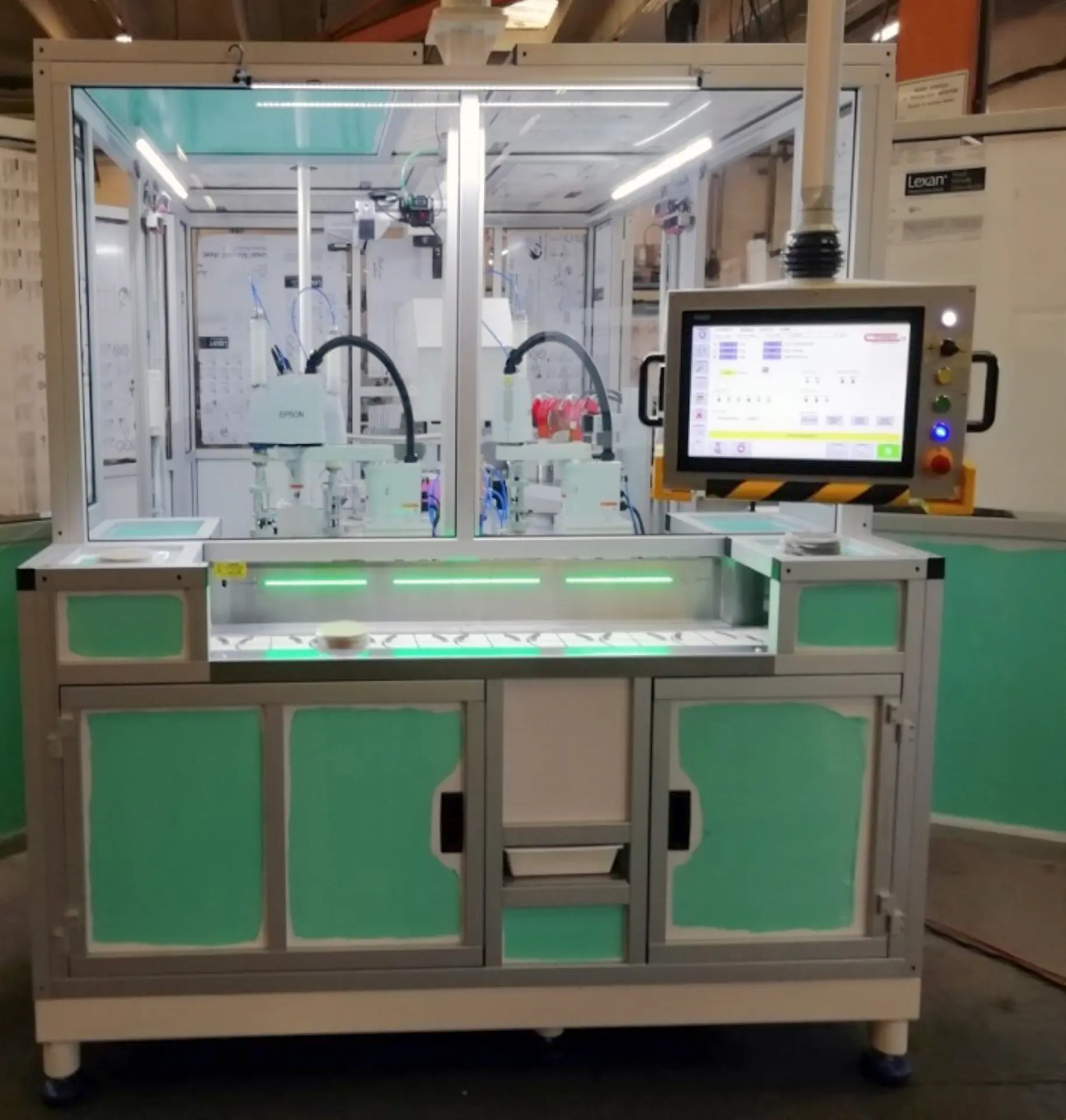

- Baseplate printing machine
- One-piece / two-pieces flange assembling machine
- Ostomy pouches production machine

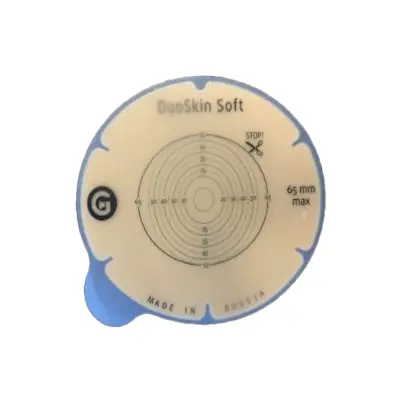

Persico Group & bielomatik offer production machines for the printing of baseplates

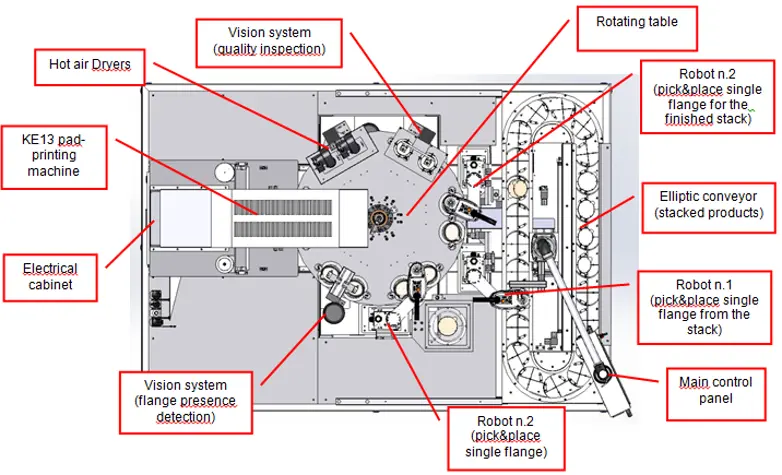

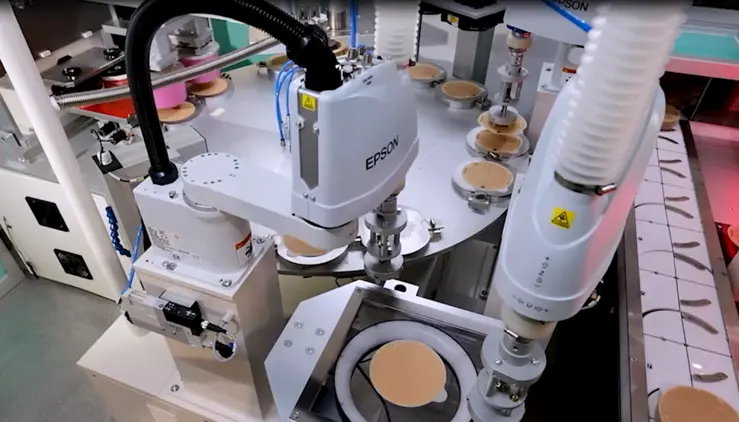

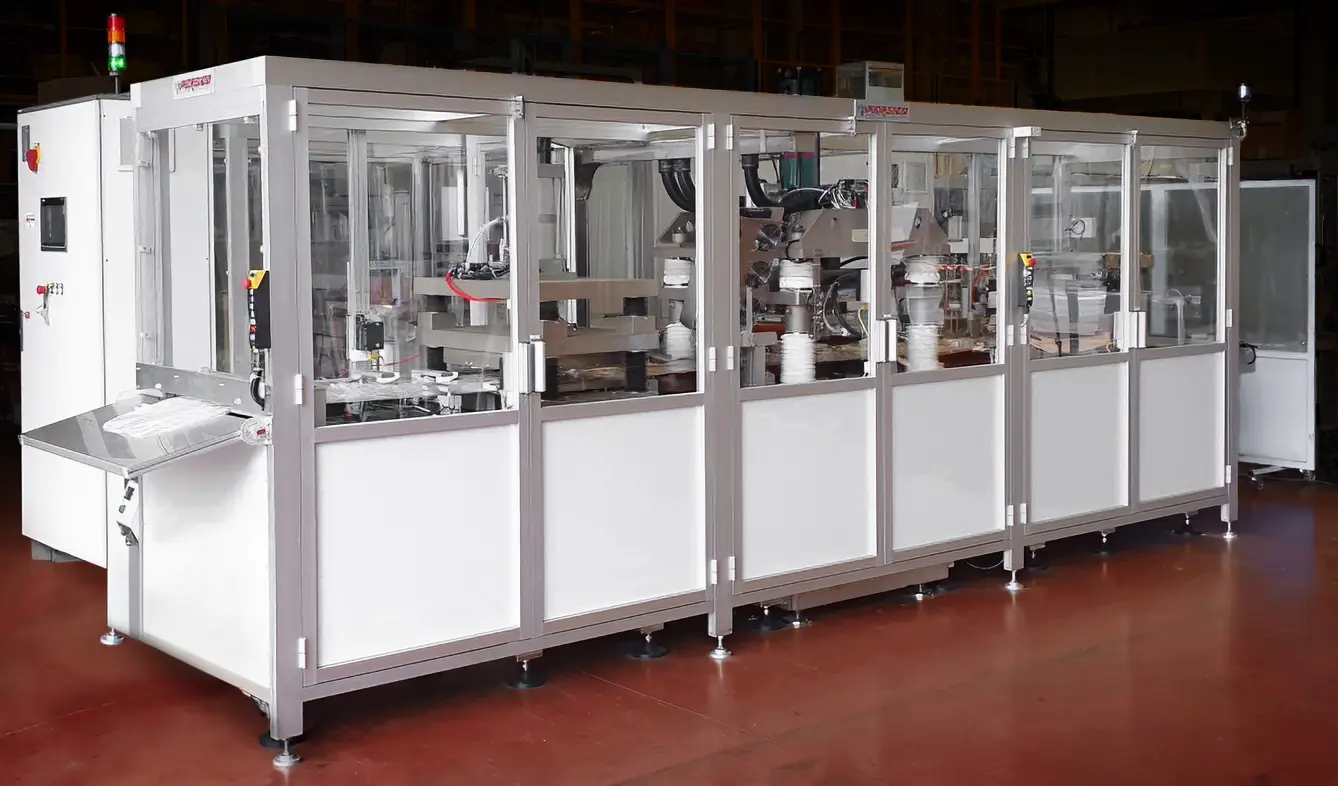

Baseplate printing and stacking machine

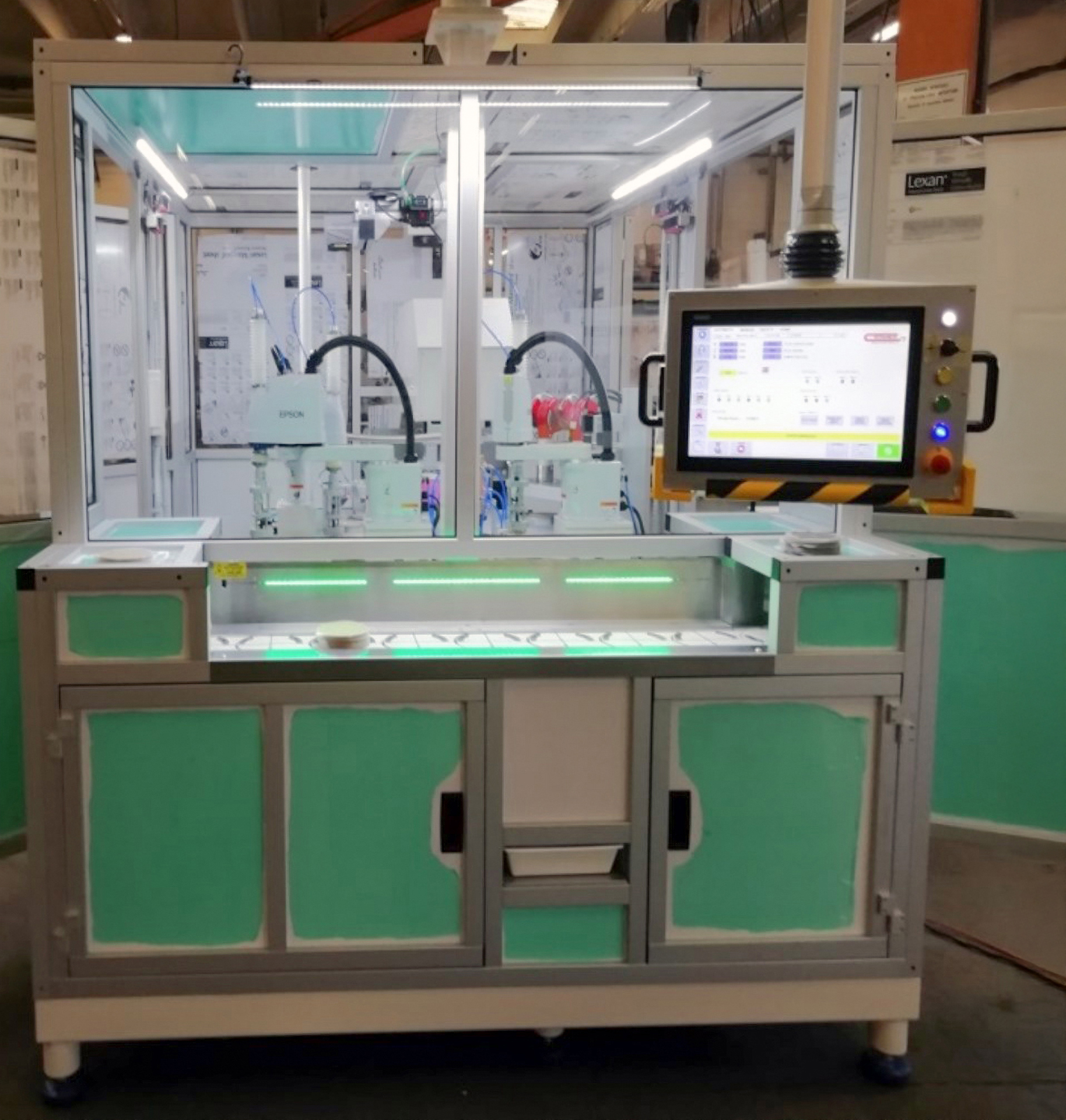

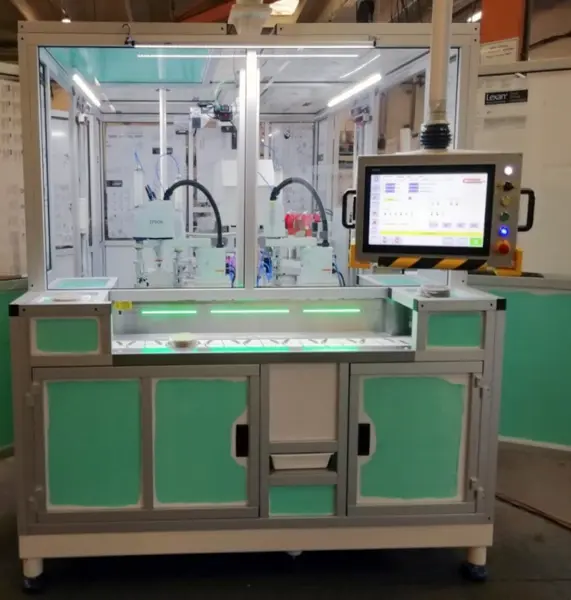

Flange / baseplate forming, punching and joining machine
- High frequency welding machine for PVC bags
- Thermal welding machine for PVC Free bag
- Bag filling machines

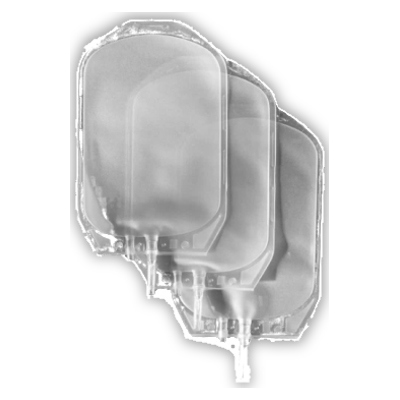

Infusion bags:
(from PVC Free film)
- Production speed: up to 4000 bags/hour (one liter bag)
- Bags volume: from 50 ml to 5000 ml
- With one/two tubes or boat port
- High frequency welding machine for PVC bags
- Thermal welding machine for PVC free bag
- PoC activities
- Prototyping service
- Product development support
- Validation support
- Port welding
- Perimeter welding
- Product development support
- Validation support
